Product Description

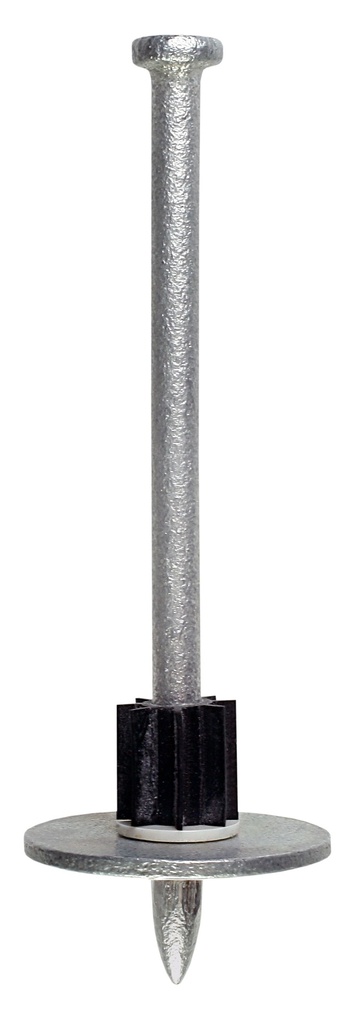

The PDPAWL is a powder-actuated washered pin designed to fasten building components to concrete, steel and CMU. The PDPAWL consists of a hardened-steel PDPA pin preassembled with a 1″ washer that provides additional bearing surface for enhanced upload resistance. The PDPAWL is designed for use with Simpson Strong-Tie® powder-actuated tool systems as well as other common tools.
Features
- The minimum effective shank length must equal or exceed the sum of the thickness of the attached material and the minimum embedment depth
- Code listed per ICC-ES ESR-2138, Florida FL15730 and LA RR25469
- The PDPAWL-MG models are mechanically galvanized for additional corrosion protection
Specifications
| Image | SKU | Brand | Packaging | Length | Shank Diameter | Finish | Price |
|---|---|---|---|---|---|---|---|
![[SIM.<2.PDPAWL-250] Strong-Tie Powder Driven Pin with Washer 100pc](/web/image/product.product/29589/image_128/%5BSIM.%3C2.PDPAWL-250%5D%20Strong-Tie%20Powder%20Driven%20Pin%20with%20Washer%20100pc?unique=ef1ed72) |
Simpson Strong-Tie | 100 pc | 2-1/2" | 0.157" | Mechanically Galvanized | $21.00 |
