Product Description

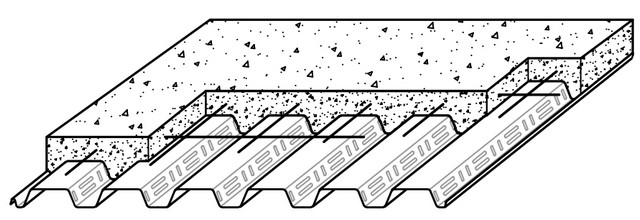

Corrugated steel decking for suspended slabs.
- Embossments rolled into the web elements to achieve the composite interlocking capacity between the steel deck and concrete.
- Steel deck section properties were calculated inaccordance with CSA S136-16
- Steel conforms to ASTM A653 SS Grade 33 with G90 surface coatings.
- Concrete is based on normal density 145 pcf and having a minimum compressive strength of 3 ksi.
Specifications

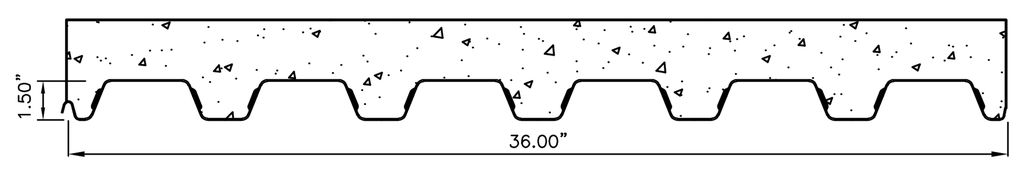

| Image | SKU | Thickness | Width | Length | Finish | Deck Rib Height | Price |
|---|---|---|---|---|---|---|---|
![[CDS.YD.DS20x3x22g] Galvanized Composite Decking Sheet (22 gauge, 20')](/web/image/product.product/15543/image_128/%5BCDS.YD.DS20x3x22g%5D%20Galvanized%20Composite%20Decking%20Sheet%20%2822%20gauge%2C%2020%27%29?unique=f0a03c2) |
22 gauge | 3' | 20' | Galvanized, Satin | 1-1/2" | $210.00 | |
![[CDS.YD.DS24x3x20g] Galvanized Composite Decking Sheet (20 gauge, 24')](/web/image/product.product/15539/image_128/%5BCDS.YD.DS24x3x20g%5D%20Galvanized%20Composite%20Decking%20Sheet%20%2820%20gauge%2C%2024%27%29?unique=f0a03c2) |
20 gauge | 3' | 24' | Galvanized, Satin | 1-1/2" | $315.00 | |
![[CDS.YD.DS24x3x18g] Galvanized Composite Decking Sheet (18 gauge, 24')](/web/image/product.product/15538/image_128/%5BCDS.YD.DS24x3x18g%5D%20Galvanized%20Composite%20Decking%20Sheet%20%2818%20gauge%2C%2024%27%29?unique=f0a03c2) |
18 gauge | 3' | 24' | Galvanized, Satin | 1-1/2" | $425.00 |
